Visual Charge Media

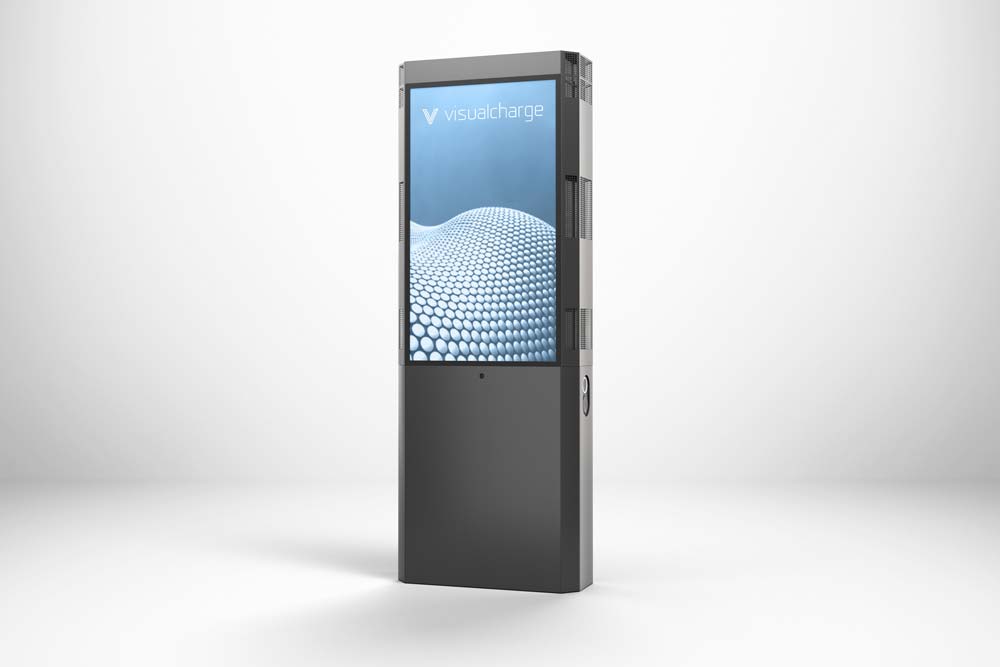

55" Double Sided TFT Display. Built-in smart charging.

Smart EV-charging combined with digital outdoor advertising

Delivering innovative and information sharing solutions for your business, city or community globally.

Efficient EV-charging

Charging points with varying speed, based upon location to make day to day life easier for EV drivers.

Digital skärm med reklam

Kategori

Specifications

Superior end user experience

Functionalities

Modularity

Robust structure

Remote operation

Specifications

  • 4G Remote operation
  • Low maintenance cost AC charging station
  • Can be connected to back-end systems
  • Extremely durable IP44 and IK10
  • High power charging stations (max. 22kW)
  • Mode 3 sockets to charge all major EVs
  • Charging status indicators (Green or Blue)

Superior end user experience

  • Simple to use charging. No buttons or displays
  • Mode 3 release lock to release the charging cable in the possible event of electricity cut
  • Multiple identification options include RFID, mobile App, NFC, SMS or “plug-and-charge” without identification

Functionalities

  • Dynamic load management functionality enables high charging powers with lower power connections, and saves operational cost
  • Integrated distribution cabinet for grid connection and smart meter
  • Ability to integrate with buildings’ management system
  • Bidirectional charging to utilize EV’s battery in V2G and V2H
  • Advanced EV to charger communication with IEC15118
  • RCD, MCD, surge, MID meter can be inserted into the charger to have full control of the service and maximal safety

Modularity

  • Single and dual charging models
  • Slim modular design for demanding urban environments
  • Optional domestic sockets

Robust structure

  • Steel Body & Aluminium, RAL9026
  • 55″ TFT display with vandal proof class
  • Optionally with anti-graffiti coating
  • Suitable for cold, hot, moisture and erosive conditions
  • High structural durability: IP44 and IK10

Remote operation

  • 4G Remote Operation
  • EV charging connection with 3G, 2G, Ethernet or WiFi to IT systems
  • OCPP 1.6 connection to a back end system
